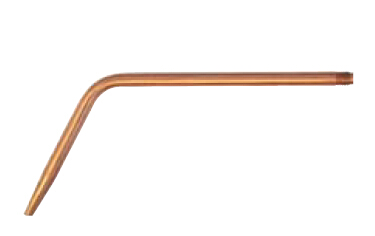

捷锐ET型氧气、乙炔焊嘴，3-ET，焊嘴规格:3，适配混合器：4-UM

型号
Model Number

焊嘴规格
Tip Size

焊接厚度
Welding Thickness

(mm)

氧气压力

Oxygen Pressure

 (MPa)

乙炔压力

Acetylene Pressure

(MPa)

适配混合器

Mixer

000-ET

0

0.8

0.021/0.035

0.021/0.035

2-UM

00-ET

0

1.2

0.021/0.035

0.021/0.035

2-UM

0-ET

0

2

0.021/0.035

0.021/0.035

2-UM

1-ET

1

2.4

0.021/0.035

0.021/0.035

2-UM

2-ET

2

3.2

0.021/0.035

0.021/0.035

2-UM

3-ET

3

4.8

0.028/0.049

0.021/0.042

4-UM

4-ET

4

6.4

0.035/0.070

0.028/0.049

4-UM

5-ET

5

13

0.042/0.084

0.035/0.056

6-UM

6-ET

6

19

0.049/0.098

0.042/0.063

6-UM

000-ET-1

0

0.8

0.021/0.035

0.021/0.035

4-UM-1

00-ET-1

0

1.2

0.021/0.035

0.021/0.035

4-UM-1

0-ET-1

0

2

0.021/0.035

0.021/0.035

4-UM-1

1-ET-1

1

2.4

0.021/0.035

0.021/0.035

4-UM-1

2-ET-1

2

3.2

0.021/0.035

0.021/0.035

4-UM-1

3-ET-1

3

4.8

0.028/0.049

0.021/0.042

4-UM-1

4-ET-1

4

6.4

0.035/0.070

0.028/0.049

4-UM-1

5-ET-1

5

13

0.042/0.084

0.035/0.056

7-UM-1

6-ET-1

6

19

0.049/0.098

0.042/0.063

7-UM-1

000-ET-J

0

0.8

0.021/0.035

0.021/0.035

4-UM-J

00-ET-J

0

1.2

0.021/0.035

0.021/0.035

4-UM-J

0-ET-J

0

2

0.021/0.035

0.021/0.035

4-UM-J

1-ET-J

1

2.4

0.021/0.035

0.021/0.035

4-UM-J

2-ET-J

2

3.2

0.021/0.035

0.021/0.035

4-UM-J

3-ET-J

3

4.8

0.028/0.049

0.021/0.042

4-UM-J

4-ET-J

4

6.4

0.035/0.070

0.028/0.049

4-UM-J

6-ET-J

6

19

0.049/0.098

0.042/0.063

7-UM-J
